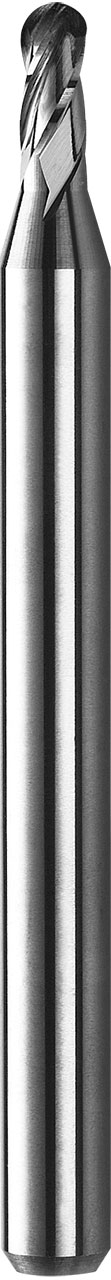

0.80mm Dia, 4 Flute, Ball Nose End Mill - 05039
SERIES: M4BM
Micro End Mill
0.80mm Dia, 2.40mm LOC, 3.00mm Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series M4BM, Micro, Ball Nose End Mill - 05039
Feature & Benefits
Four flute design allows for higher feed rates and decreased deflection, improving productivity and surface finish
Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
High performance carbide substrate designed specifically for Micro Tool applications
Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
Manufactured in accordance with KSPT ISO certified quality procedures
| Series Description | Micro End Mill |
|---|---|
| High Performance | No |
| End Configuration | Ball Nose |
| Unit (inch/mm) | mm |
| Number of Flutes | 4 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

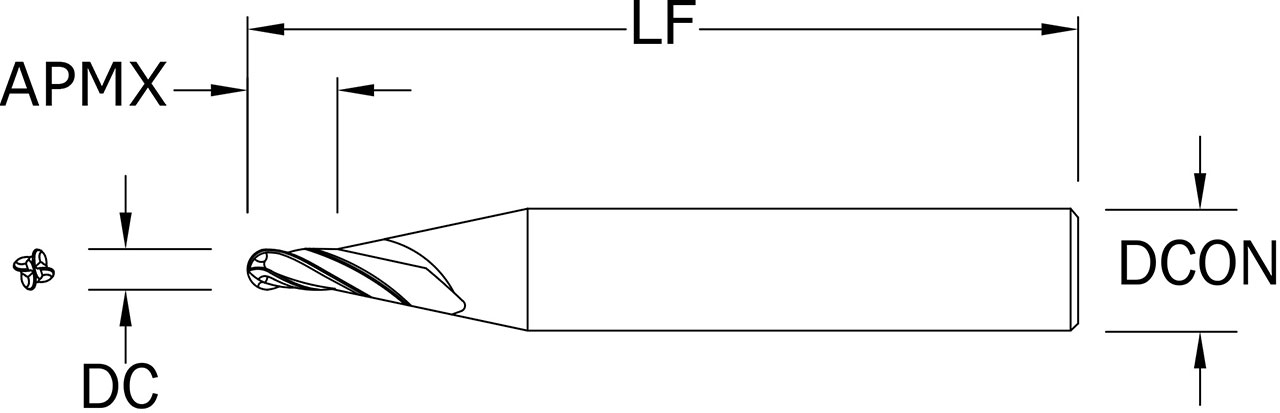

| Cutting Diameter (DC) (Decimal Inch) | 0.0315 |
| Cutting Diameter (DC) (mm) | 0.80 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1181 |
| Shank Diameter (DCON) (mm) | 3.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.0945 |
| Length of Cut (APMX) (mm) | 2.40 |
| Overall Length (LF) (Decimal Inch) | 1.4961 |
| Overall Length (LF) (mm) | 38.00 |
| Shank Length (LS) (Decimal Inch) | 1.4016 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.025 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Corner Radius (RE) Tolerance (Decimal Inch) | +0.0003/-0.0000 |
| Corner Radius (RE) Tolerance (mm) | +0.008/-0.000 |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Chip Breaker | No |
| KPT Micro Crossover (Old Material Number) | 8505404 |
| KPT Micro Crossover (Part Number) | 1825-0315L095 |
| KPT Micro Crossover Type | Direct Match |
| US Stock | 39 |
| Shank Type | Straight |
| Rake Angle | Positive |
| Shipping Weight | 0.0121 |
| Tool Length | Regular |
| LOC (xD) | 3xD |
| Profile Angle (Degree) | 15 |
| Center Cutting | Yes |
| Series | M4BM |
| Weldon Flat | No |
| Shank Length (LS) (mm) | 35.60 |
