0.0300" Dia, 3 Flute, Square End End Mill - 03539
SERIES: M3S
Micro End Mill
0.0300" Dia, 0.0450" LOC, 0.1500" Reach, 1/8" Shank Dia, 3 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series M3S, Micro, Square End End Mill - 03539
Feature & Benefits
Three flute design features improved chip space over four flutes and increased strength and feed capability over two flutes
Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
High performance carbide substrate designed specifically for Micro Tool applications
Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
Manufactured in accordance with KSPT ISO certified quality procedures
| Series Description | Micro End Mill |
|---|---|
| High Performance | No |
| End Configuration | Square End |
| Unit (inch/mm) | inch |
| Number of Flutes | 3 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Secondary Workpiece Material | (H) Hardened Materials |

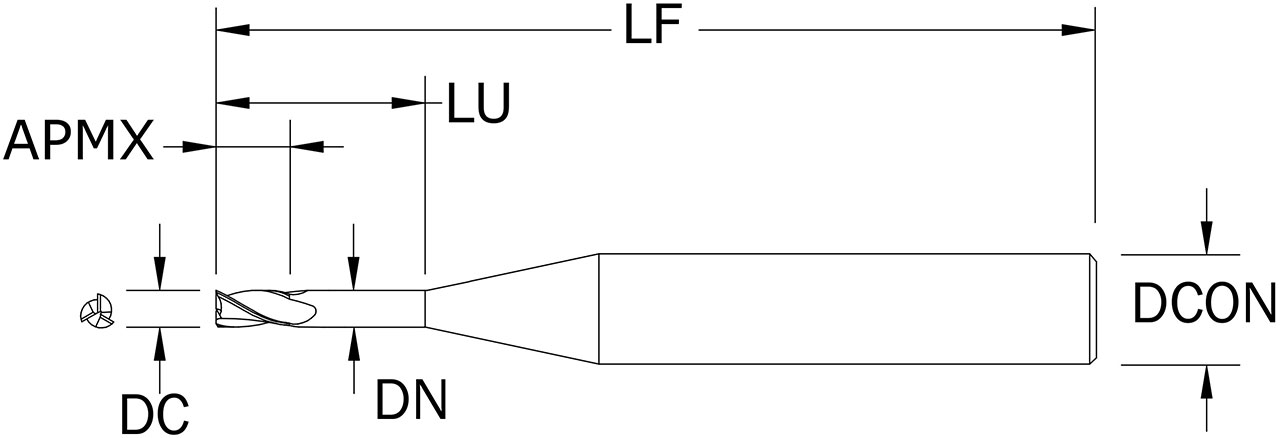

| Cutting Diameter (DC) (Decimal Inch) | 0.0300 |
| Cutting Diameter (DC) (mm) | 0.76 |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Length of Cut (APMX) (Decimal Inch) | 0.0450 |
| Length of Cut (APMX) (mm) | 1.14 |
| Reach (LU) (Decimal Inch) | 0.1500 |
| Reach (LU) (mm) | 3.81 |
| Overall Length (LF) (Decimal Inch) | 2.5000 |
| Overall Length (LF) (mm) | 63.50 |
| Neck Diameter (DN) (Decimal Inch) | 0.0893 |
| Neck Diameter (DN) (mm) | 2.27 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.025 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Chip Breaker | No |
| KPT Micro Crossover Type | Alternate |
| US Stock | 0 |
| Shank Type | Straight |
| Overall Length (LF) (Fractional Inch) | 2-1/2 |
| Rake Angle | Positive |
| Shipping Weight | 0.0210 |
| Tool Length | Long Reach Neck |
| Reach (xD) | 5xD |
| LOC (xD) | 1.5xD |
| Profile Angle (Degree) | 15 |
| Center Cutting | Yes |
| Series | M3S |
| Weldon Flat | No |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
Alternate Products
0.0300" Dia, 0.0450" LOC, 0.1500" Reach, 1/8" Shank Dia, 3 Flute, 30 Degree Helix, Uncoated, Series M3S, Micro, Square End End Mill - 09628
U.S. stocked items ship next day
Total Available U.S. :26
