0.0620" Dia, 2 Flute, Square End End Mill - 03440


SERIES: M2S
Micro End Mill
0.0620" Dia, 0.1860" LOC, 0.7440" Reach, 1/8" Shank Dia, 2 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series M2S, Micro, Square End End Mill - 03440
Feature & Benefits
Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
High performance carbide substrate designed specifically for Micro Tool applications
Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
Manufactured in accordance with KSPT ISO certified quality procedures
List Price: $42.47
U.S. stocked items ship next day
Total Available U.S. :24
Series DescriptionMicro End Mill
High PerformanceNo
End ConfigurationSquare End
Unit (inch/mm)inch
Number of Flutes2
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials

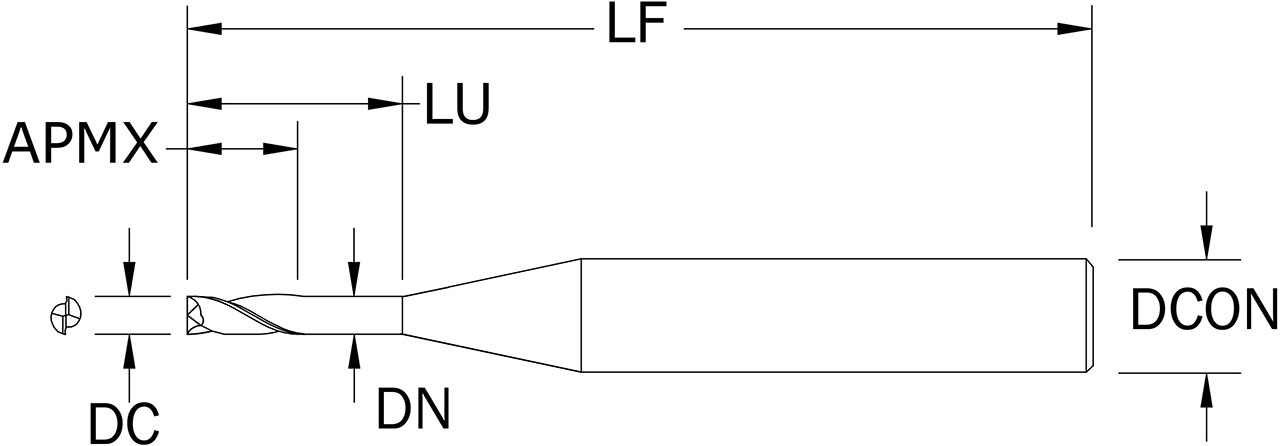

Cutting Diameter (DC) (Decimal Inch)0.0620
Cutting Diameter (DC) (mm)1.57
Shank Diameter (DCON) (Decimal Inch)0.1250
Shank Diameter (DCON) (mm)3.18
Length of Cut (APMX) (Decimal Inch)0.1860
Length of Cut (APMX) (mm)4.72
Reach (LU) (Decimal Inch)0.7440
Reach (LU) (mm)18.90
Overall Length (LF) (Decimal Inch)2.0000
Overall Length (LF) (mm)50.80
Neck Diameter (DN) (Decimal Inch)0.0580
Neck Diameter (DN) (mm)1.47
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0010
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.025
Shank Diameter (DCON) Tolerance (ISO)h6
Coolant OptionExternal Coolant
Coating DescriptionAlTiN (Ti-NAMITE-A)
Additional GeometryRight Hand Cut Direction (RHC)
Helix AngleRight Spiral
Helix Angle (Degree)30
Variable HelixNo
Chip BreakerNo
KPT Micro Crossover TypeAlternate
US Stock24
Shank TypeStraight
Overall Length (LF) (Fractional Inch)2
Rake AnglePositive
Shipping Weight0.0170
Tool LengthLong Reach Neck
Reach (xD)12xD
LOC (xD)3xD
Profile Angle (Degree)15
Center CuttingYes
SeriesM2S
Weldon FlatNo
Shank Diameter (DCON) (Fractional Inch)1/8
