0.0650" Dia, 2 Flute, Square End End Mill - 09380
SERIES: M2S
Micro End Mill
0.0650" Dia, 0.1950" LOC, 0.7800" Reach, 1/8" Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series M2S, Micro, Square End End Mill - 09380
Feature & Benefits
Two flute design is ideal for softer alloyed, non-ferrous material applications that require slotting or involve heavy chip loads
Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
High performance carbide substrate designed specifically for Micro Tool applications
Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
Manufactured in accordance with KSPT ISO certified quality procedures
Series Description | Micro End Mill |
---|---|
High Performance | No |
End Configuration | Square End |
Unit (inch/mm) | inch |
Number of Flutes | 2 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |

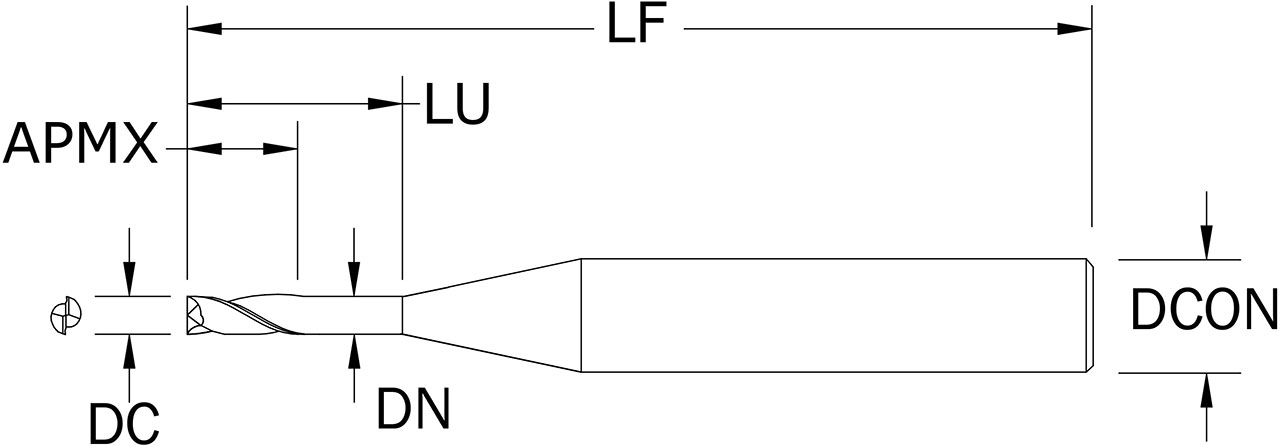

Cutting Diameter (DC) (Decimal Inch) | 0.0650 |
Cutting Diameter (DC) (mm) | 1.65 |
Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
Shank Diameter (DCON) (mm) | 3.18 |
Length of Cut (APMX) (Decimal Inch) | 0.1950 |
Length of Cut (APMX) (mm) | 4.95 |
Reach (LU) (Decimal Inch) | 0.7800 |
Reach (LU) (mm) | 19.81 |
Overall Length (LF) (Decimal Inch) | 2.0000 |
Overall Length (LF) (mm) | 50.80 |
Neck Diameter (DN) (Decimal Inch) | 0.0610 |
Neck Diameter (DN) (mm) | 1.55 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0010 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.025 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Additional Geometry | Right Hand Cut Direction (RHC) |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 30 |
Variable Helix | No |
Chip Breaker | No |
KPT Micro Crossover Type | Alternate |
US Stock | 0 |
Shank Type | Straight |
Overall Length (LF) (Fractional Inch) | 2 |
Rake Angle | Positive |
Shipping Weight | 0.0170 |
Tool Length | Long Reach Neck |
Reach (xD) | 12xD |
LOC (xD) | 3xD |
Profile Angle (Degree) | 15 |
Center Cutting | Yes |
Series | M2S |
Weldon Flat | No |
Shank Diameter (DCON) (Fractional Inch) | 1/8 |
Coolant Option | External Coolant |
Coating Description | Bright/Uncoated |
