1" Dia, 5 Flute, Square End End Mill - 32671
SERIES: 55S
V-Carb

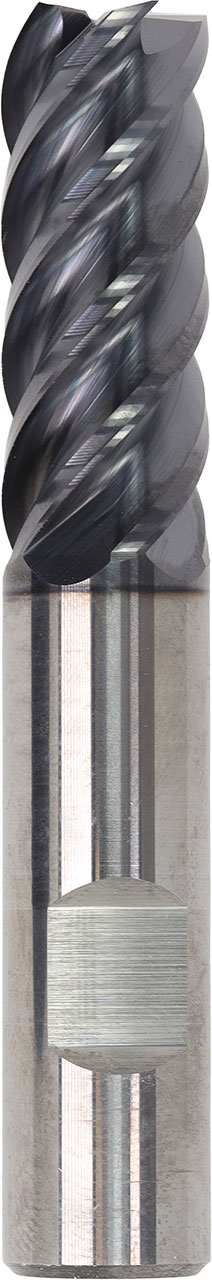

1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 45 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 55S, V-Carb, Square End End Mill - 32671
Feature & Benefits
Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
The choice when peak finish quality is the requirement
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | V-Carb |
|---|---|
| High Performance | Yes |
| Number of Flutes | 5 |
| Secondary Workpiece Material | (H) Hardened Materials |
| Shank Length (LS) (Decimal Inch) | 2.5000 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Shank Type | Weldon (Drive Flat) |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 45 |
| Variable Helix | No |
| Chip Breaker | No |
| US Stock | 44 |

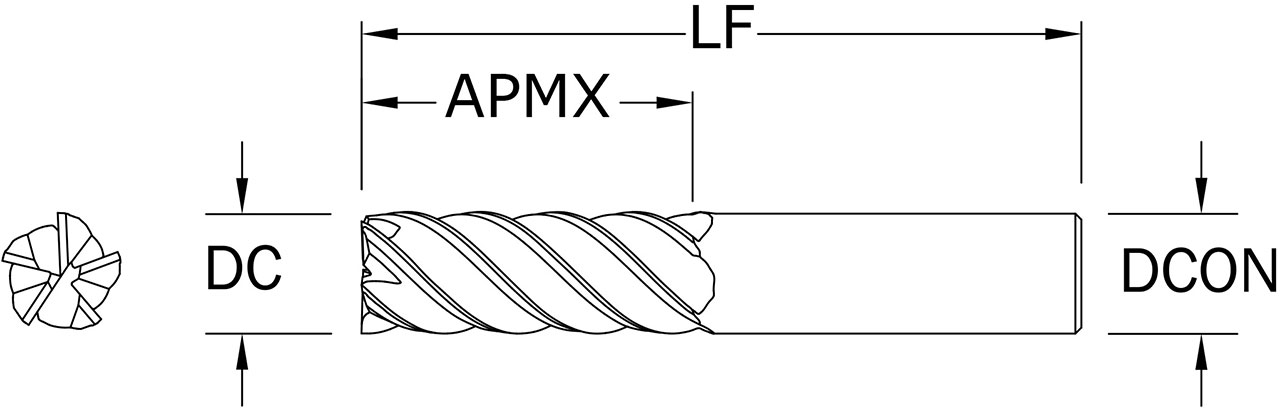

| Cutting Diameter (DC) (Fractional Inch) | 1 |
| Length of Cut (APMX) (Fractional Inch) | 1-1/2 |
| Overall Length (LF) (Fractional Inch) | 4 |
| Shank Length (LS) (Fractional Inch) | 2-1/2 |
| Rake Angle | Positive |
| Shipping Weight | 1.5010 |
| Center Cutting | Yes |
| Series | 55S |
| Weldon Flat | Yes |
| Shank Length (LS) (mm) | 63.50 |
| Shank Diameter (DCON) (Fractional Inch) | 1 |
| Tool Length | Stub |
| End Configuration | Square End |
| Shank Diameter (DCON) (Decimal Inch) | 1.0000 |
| Shank Diameter (DCON) (mm) | 25.40 |
| Length of Cut (APMX) (Decimal Inch) | 1.5000 |
| Length of Cut (APMX) (mm) | 38.10 |
| Overall Length (LF) (Decimal Inch) | 4.0000 |
| Overall Length (LF) (mm) | 101.60 |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Flute Type | Spiral |
| Unit (inch/mm) | inch |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Cutting Diameter (DC) (Decimal Inch) | 1.0000 |
| Cutting Diameter (DC) (mm) | 25.40 |
Alternate Products
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37130
U.S. stocked items ship next day
Total Available U.S. :0
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 37137
U.S. stocked items ship next day
Total Available U.S. :5
1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5S, Z-Carb-HPR, Square End End Mill - 38523
U.S. stocked items ship next day
Total Available U.S. :0

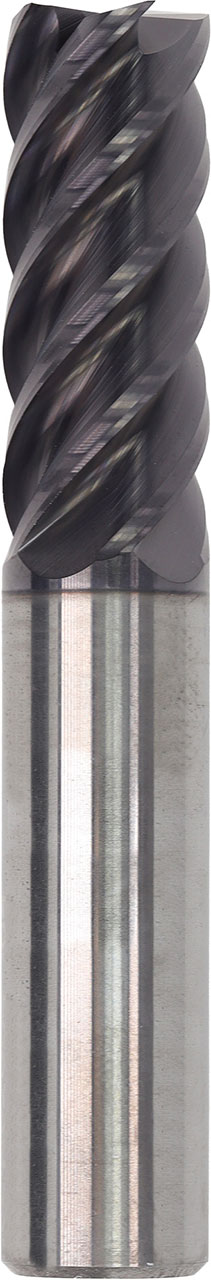

1" Dia, 1-1/2" LOC, 1" Shank Dia, 5 Flute, 45 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 55S, V-Carb, Square End End Mill - 32670
