1/2" Dia, 5 Flute, Corner Radius End Mill - 37338


SERIES: Z5C
Z-Carb-HPR

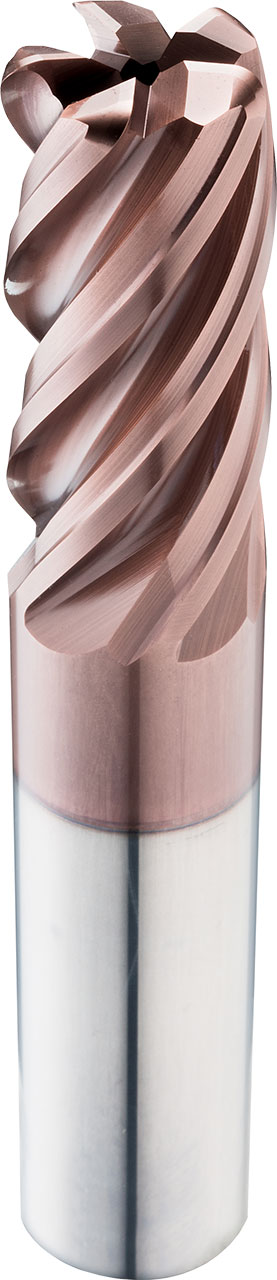

1/2" Dia, 5/8" LOC, 1/2" Shank Dia, 0.0900" Radius, 5 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37338
Feature & Benefits
An ideal balance of helix, indexing, flute depth, rake and relief
Variable indexing for chatter supression and patented edge geometry for shearing and strength
Chatter-free geometry allows deep cutting and high speed machining
Central coolant hole delivers coolant effectively to the cutting zone enhancing chip removal when pocketing or slotting
Enhanced corner geometry with tight tolerance corner radii
Excels at roughing, ramping, high speed machining and finishing in a variety of materials
List Price: $182.86
U.S. stocked items ship next day
Total Available U.S. :0
Series DescriptionZ-Carb-HPR
High PerformanceYes
End ConfigurationCorner Radius
Tool LengthStub
Unit (inch/mm)inch
Number of Flutes5
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials

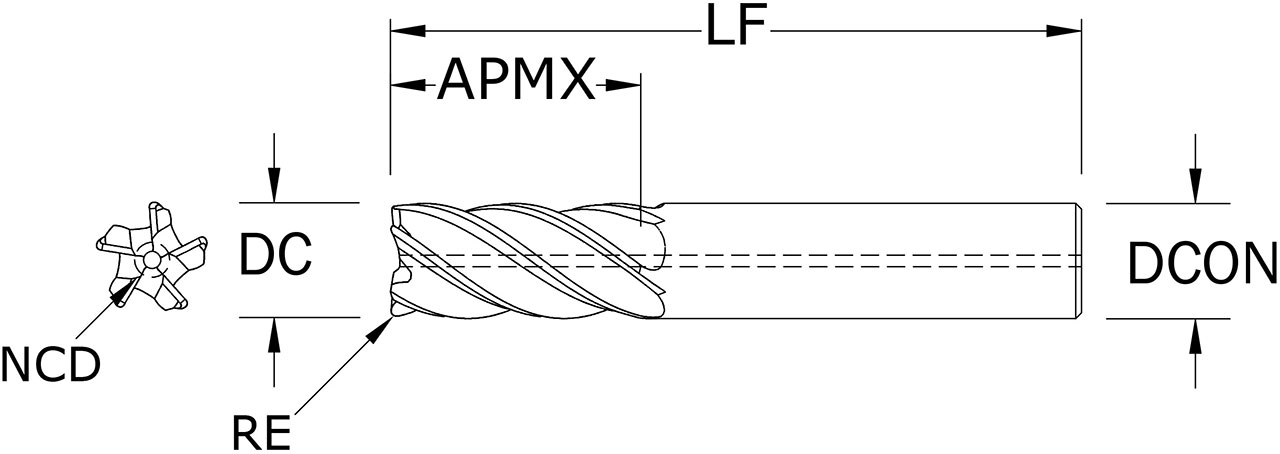

Cutting Diameter (DC) (Decimal Inch)0.5000
Cutting Diameter (DC) (Fractional Inch)1/2
Cutting Diameter (DC) (mm)12.70
Shank Diameter (DCON) (Decimal Inch)0.5000
Shank Diameter (DCON) (mm)12.70
Length of Cut (APMX) (Decimal Inch)0.6250
Length of Cut (APMX) (Fractional Inch)5/8
Length of Cut (APMX) (mm)15.88
Overall Length (LF) (Decimal Inch)3.0000
Overall Length (LF) (Fractional Inch)3
Overall Length (LF) (mm)76.20
Corner Radius (RE) (Decimal Inch)0.0900
Corner Radius (RE) (mm)2.29
Shank Length (LS) (Decimal Inch)2.3750
Non-Cutting Center Diameter (NCD) (Decimal Inch)0.1750
Non-Cutting Center Diameter (NCD) (mm)4.45
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)h6
Corner Radius (RE) Tolerance (Decimal Inch)+0.0000/-0.0020
Corner Radius (RE) Tolerance (mm)+0.000/-0.050
Shank TypeStraight
Coolant OptionInternal Coolant
Coating DescriptionTM (Ti-NAMITE-M)
Additional GeometryRight Hand Cut Direction (RHC)
Rake AnglePositive
Helix AngleRight Spiral
Helix Angle (Degree)37
Variable HelixNo
Chip BreakerNo
US Stock0
Shank Length (LS) (Fractional Inch)2-3/8
Shipping Weight0.2880
Center CuttingNo
SeriesZ5C
Weldon FlatNo
Shank Length (LS) (mm)60.33
Shank Diameter (DCON) (Fractional Inch)1/2

Alternate Products

1/2" Dia, 5 Flute, Corner Radius End Mill - 37034
1/2" Dia, 5/8" LOC, 1/2" Shank Dia, 0.0900" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37034
List Price: $149.54
U.S. stocked items ship next day
Total Available U.S. :13
1/2" Dia, 5 Flute, Corner Radius End Mill - 37028
1/2" Dia, 5/8" LOC, 1/2" Shank Dia, 0.0900" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37028
List Price: $141.56
U.S. stocked items ship next day
Total Available U.S. :7
1/2" Dia, 5 Flute, Corner Radius End Mill - 38536
1/2" Dia, 5/8" LOC, 1/2" Shank Dia, 0.0900" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 38536
List Price: $141.76
U.S. stocked items ship next day
Total Available U.S. :0

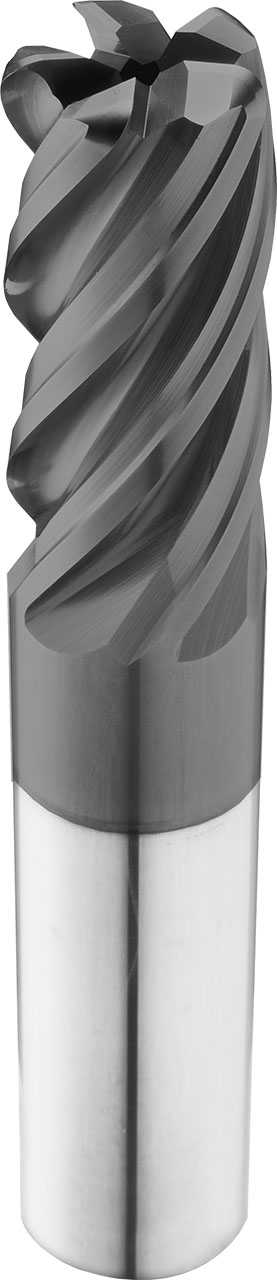

1/2" Dia, 5 Flute, Corner Radius End Mill - 37337
