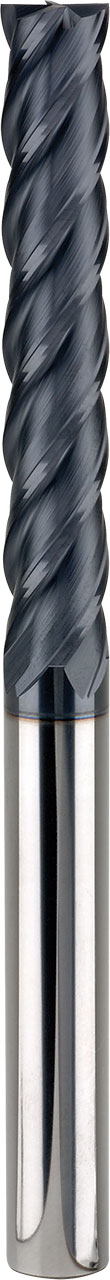

12.00mm Dia, 4 Flute, Square End End Mill - 70558
SERIES: 7MS
Series 7
12.00mm Dia, 75.00mm LOC, 12.00mm Shank Dia, 4 Flute, 38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series 7MS, Series 7, Square End End Mill - 70558
Feature & Benefits
Variable pitch allows for improved chatter suppression along with improved surface finish and enhanced tool life
Raised land and increased core diameter designed to enhance tool life and decrease tool deflection
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
| Series Description | Series 7 |
|---|---|
| High Performance | Yes |
| Number of Flutes | 4 |
| Secondary Workpiece Material | (H) Hardened Materials |

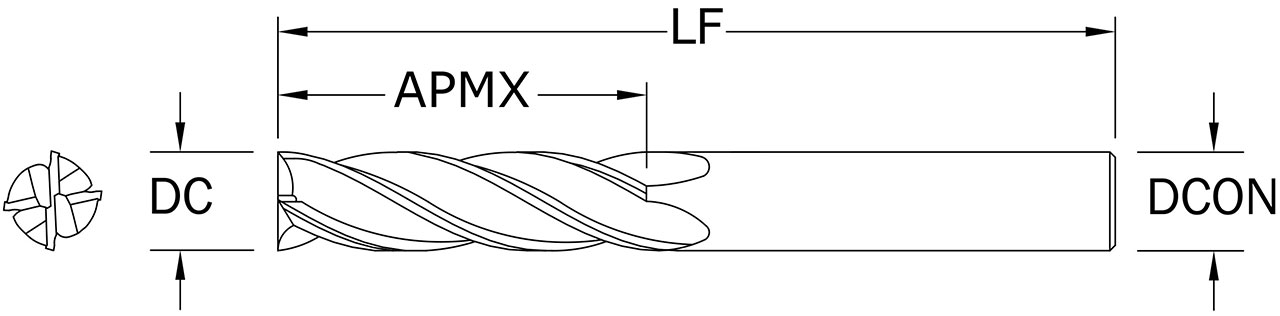

| Shank Length (LS) (Decimal Inch) | 2.9570 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 38 |
| Variable Helix | No |
| Chip Breaker | No |
| US Stock | 0 |
| Shank Type | Straight |
| Rake Angle | Positive |
| Shipping Weight | 0.4900 |
| Center Cutting | Yes |
| Series | 7MS |
| Weldon Flat | No |
| Shank Length (LS) (mm) | 75.11 |
| Tool Length | Extra Long |
| End Configuration | Square End |
| Shank Diameter (DCON) (Decimal Inch) | 0.4724 |
| Shank Diameter (DCON) (mm) | 12.00 |
| Length of Cut (APMX) (Decimal Inch) | 2.9528 |
| Length of Cut (APMX) (mm) | 75.00 |
| Overall Length (LF) (Decimal Inch) | 5.9055 |
| Overall Length (LF) (mm) | 150.00 |
| Coolant Option | External Coolant |
| Coating Description | TX (Ti-NAMITE-X) |
| Flute Type | Spiral |
| Unit (inch/mm) | mm |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
| Cutting Diameter (DC) (Decimal Inch) | 0.4724 |
| Cutting Diameter (DC) (mm) | 12.00 |
