#17, 118 Degree Point, Solid Carbide Drill - 51017

SERIES: 101

General Application Drill

#17, 118 Degree Point, 0.1730" Shank Dia, 2-3/4" OAL, 2 Flute, 5xD, Uncoated, Series 101, Solid Carbide Drill - 51017

Total Available U.S. :5

Series Description	General Application Drill
Number of Flutes	2
Secondary Workpiece Material	(H) Hardened Materials
Size	#17

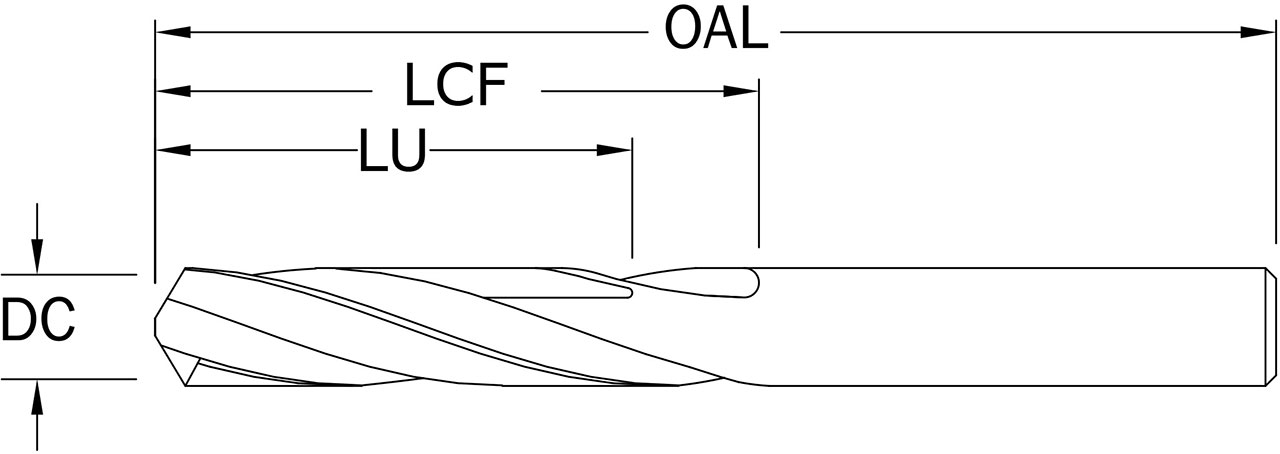

Cutting Diameter (DC) (Wire)	#17
Shank Length (LS) (Decimal Inch)	1.1250
Cutting Diameter (DC) Tolerance (Decimal Inch)	+.00000 / -.00050
Cutting Diameter (DC) Tolerance (mm)	+.0000 / -.0127
Shank Diameter (DCON) Tolerance (ISO)	h6
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	20
US Stock	5
Usable Length (LU) (Fractional Inch)	1-19/64
Flute Length (LCF) (Fractional Inch)	1-5/8
Overall Length (OAL) (Fractional Inch)	2-3/4
Shank Length (LS) (Fractional Inch)	1-1/8
Number of Margins	2
Shank Type	Straight
Shipping Weight	0.0260
Center Cutting	No
Series	101
Shank Length (LS) (mm)	28.58
Reach (xD)	5xD
Shank Diameter (DCON) (Decimal Inch)	0.1730
Shank Diameter (DCON) (mm)	4.39
Usable Length (LU) (Decimal Inch)	1.2969
Usable Length (LU) (mm)	32.94
Flute Length (LCF) (Decimal Inch)	1.6250
Flute Length (LCF) (mm)	41.28
Overall Length (OAL) (Decimal Inch)	2.7500
Overall Length (OAL) (mm)	69.85
Point Angle (Degree)	118
Coolant Option	External Coolant
Coating Description	Bright/Uncoated
Double Margins (Yes/No)	No
Flute Type	Spiral
Unit (inch/mm)	inch
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(N) Non-Ferrous Materials\|(S) High Temp Alloy
Cutting Diameter (DC) (Decimal Inch)	0.1730
Cutting Diameter (DC) (mm)	4.39

Alternate Products

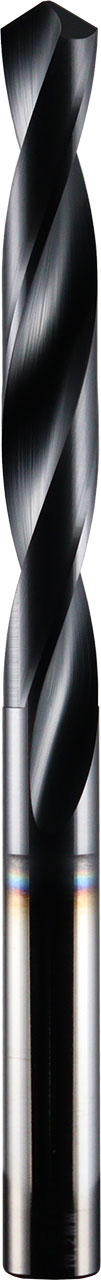

#17, 118 Degree Point, 0.1730" Shank Dia, 2-3/4" OAL, 2 Flute, 5xD, Ti-NAMITE-A (AlTiN) Coated, Series 101, Solid Carbide Drill - 57150
