Home/Solid Round Tools/Milling/High Performance Aluminum End Mills/3.00mm Dia, 2 Flute, Square End End Mill - 49663

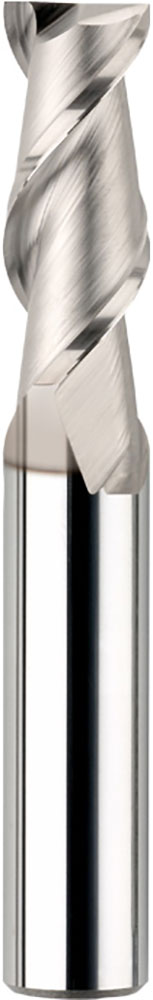

3.00mm Dia, 2 Flute, Square End End Mill - 49663
SERIES: 44S
Ski-Carb
3.00mm Dia, 8.00mm LOC, 6.00mm Shank Dia, 2 Flute, 45 Degree Helix, Uncoated, Series 44S, Ski-Carb, Square End End Mill - 49663
Feature & Benefits
Polished ski land with primary and secondary flute wall design minimizes chip interference by directing chips away from secondary flute
Circular land allows for increased control at various speed and feed rates ultimately reducing chatter
Recommended for materials ≤ 150 Bhn (≤ 7 HRc)
| Series Description | Ski-Carb |
|---|---|
| High Performance | Yes |
| Number of Flutes | 2 |
| Secondary Workpiece Material | Plastics & Composites |
| Shank Length (LS) (Decimal Inch) | 1.7320 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.00024 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.006 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 45 |
| Variable Helix | No |
| Chip Breaker | No |
| US Stock | 27 |
| Shank Type | Straight |
| Rake Angle | Positive |
| Shipping Weight | 0.0310 |
| Center Cutting | Yes |
| Series | 44S |
| Weldon Flat | No |

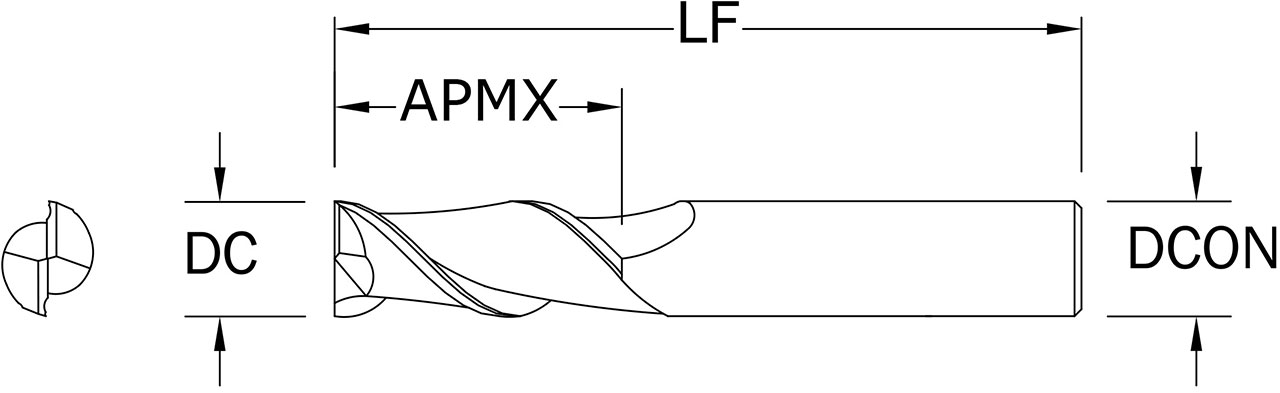

| Shank Length (LS) (mm) | 43.99 |
| Tool Length | Regular |
| End Configuration | Square End |
| Shank Diameter (DCON) (Decimal Inch) | 0.2362 |
| Shank Diameter (DCON) (mm) | 6.00 |
| Length of Cut (APMX) (Decimal Inch) | 0.3150 |
| Length of Cut (APMX) (mm) | 8.00 |
| Overall Length (LF) (Decimal Inch) | 2.0472 |
| Overall Length (LF) (mm) | 52.00 |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Flute Type | Spiral |
| Unit (inch/mm) | mm |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Cutting Diameter (DC) (Decimal Inch) | 0.1181 |
| Cutting Diameter (DC) (mm) | 3.00 |
