3/8" Dia, 6 Flute, Router - 72974

SERIES: 25

Series 25 - CFRP Compression Router

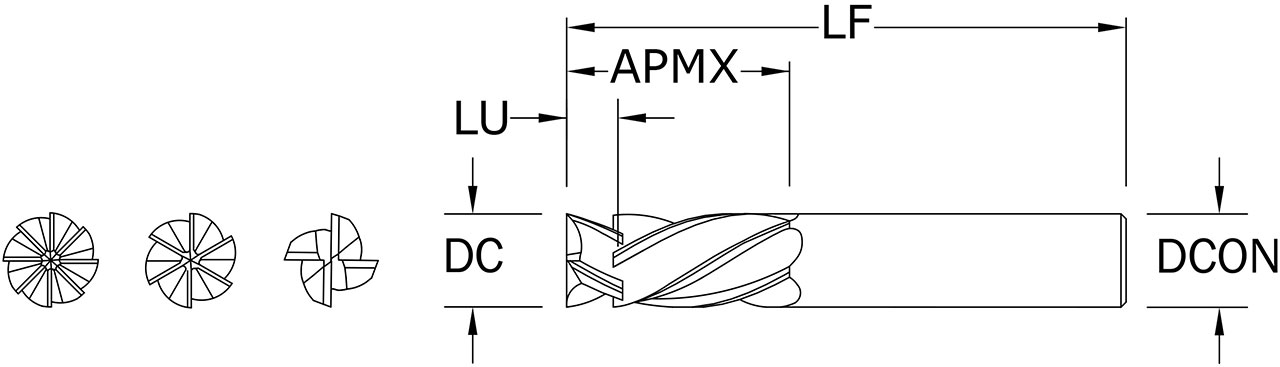

3/8" Dia, 1-1/8" LOC, 2-1/2" OAL, 3/8" Shank Dia, 6 Flute, 30 Degree Helix, Uncoated, Series 25, Series 25 - CFRP Compression Router - 72974

Feature & Benefits

Left Hand Helix

Right Hand Helix

Total Available U.S. :5

Find Distributor

Series Description	Series 25 - CFRP Compression Router
High Performance	Yes
Number of Flutes	6
Shank Length (LS) (Decimal Inch)	1.3750
Cutting Diameter (DC) Tolerance (Decimal Inch)	+0.0000/-0.0030
Cutting Diameter (DC) Tolerance (mm)	+0.000/-0.080
Shank Diameter (DCON) Tolerance (ISO)	h6
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
Helix Angle (Degree)	30
Variable Helix	No
Chip Breaker	No
US Stock	5
Cutting Diameter (DC) (Fractional Inch)	3/8
Length of Cut (APMX) (Fractional Inch)	1-1/8
Overall Length (LF) (Fractional Inch)	2-1/2
Shank Length (LS) (Fractional Inch)	1-3/8
Rake Angle	Positive
Tool Length	Long
Split Length (SPTL) (Fractional Inch)	17/64
Shank Type	Straight
Shipping Weight	0.1370
Center Cutting	Yes
Series	25
Shank Length (LS) (mm)	34.93
Shank Diameter (DCON) (Fractional Inch)	3/8
End Configuration	Square End
Shank Diameter (DCON) (Decimal Inch)	0.3750
Shank Diameter (DCON) (mm)	9.53
Length of Cut (APMX) (Decimal Inch)	1.1250
Length of Cut (APMX) (mm)	28.58
Overall Length (LF) (Decimal Inch)	2.5000
Overall Length (LF) (mm)	63.50
Coolant Option	External Coolant
Coating Description	Bright/Uncoated
Flute Type	Spiral
Unit (inch/mm)	inch
Primary Workpiece Material	(N) Non-Ferrous Materials
Cutting Diameter (DC) (Decimal Inch)	0.3750
Cutting Diameter (DC) (mm)	9.53
