5.00mm Dia, 118 Degree, 2 Flute, Countersink - 67053
SERIES: 301
General Application Drill and Countersink Combo

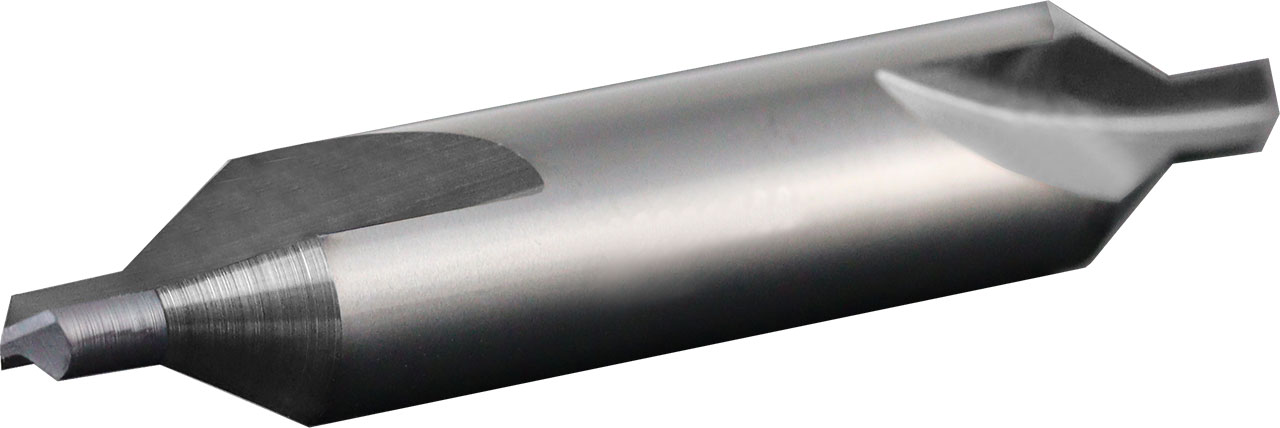

5.00mm Dia, 118 Degree, 2 Flute, 12.50mm Body Dia, Ti-NAMITE-A (AlTiN) Coated, Series 301, General Application Drill and Countersink Combo - 67053
| Series Description | General Application Drill and Countersink Combo |
|---|---|
| Number of Flutes | 2 |
| Secondary Workpiece Material | (H) Hardened Materials |
| Size | 5.00mm |

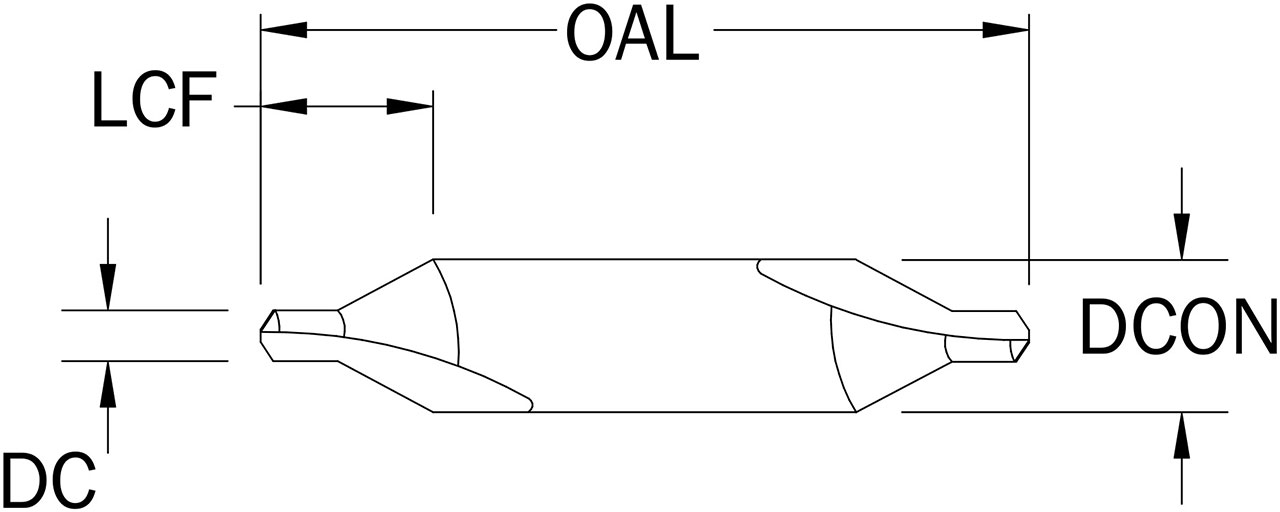

| Body Diameter (DCON) (Decimal Inch) | 0.4921 |
| Body Diameter (DCON) (mm) | 12.50 |
| Shank Length (LS) (Decimal Inch) | 0.6680 |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle (Degree) | 0 |
| Variable Helix | No |
| Chip Breaker | No |
| DIN Standard | DIN 333 |
| Chamfer Angle (a) (Degree) | 30 |
| US Stock | 0 |
| Number of Margins | 2 |
| Shank Type | Straight |
| Shipping Weight | 0.1580 |
| Center Cutting | No |
| Primary Chamfer Angle (a) (Degree) | 30 |
| Series | 301 |
| Weldon Flat | No |
| Shank Length (LS) (mm) | 16.97 |
| Flute Length (LCF) (Decimal Inch) | 0.9060 |
| Flute Length (LCF) (mm) | 23.01 |
| Overall Length (OAL) (Decimal Inch) | 2.4803 |
| Overall Length (OAL) (mm) | 63.00 |
| Point Angle (Degree) | 118 |
| Coolant Option | External Coolant |
| Coating Description | AlTiN (Ti-NAMITE-A) |
| Double Margins (Yes/No) | No |
| Flute Type | Straight |
| Unit (inch/mm) | mm |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Cutting Diameter (DC) (Decimal Inch) | 0.1969 |
| Cutting Diameter (DC) (mm) | 5.00 |
Alternate Products
5.00mm Dia, 118 Degree, 2 Flute, 12.50mm Body Dia, Uncoated, Series 301, General Application Drill and Countersink Combo - 67023
U.S. stocked items ship next day
Total Available U.S. :248
