7/64" Dia, 4 Flute, Square End End Mill - 30113
SERIES: 01S
General Application End Mill

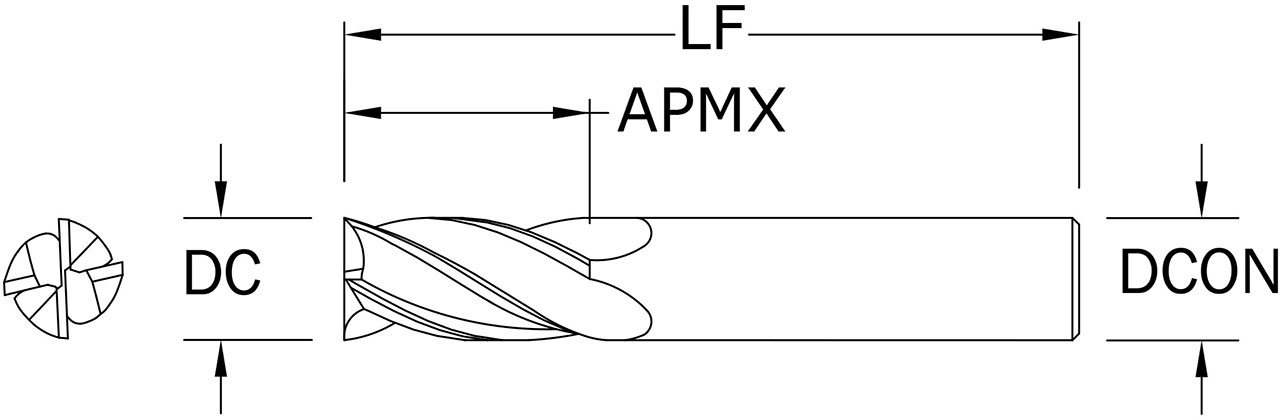

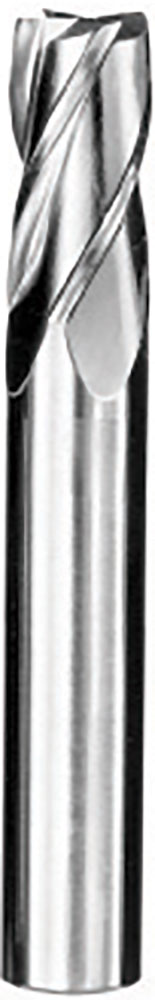

7/64" Dia, 3/8" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Uncoated, Series 01S, Square End End Mill - 30113
| Series Description | General Application End Mill |
|---|---|
| Number of Flutes | 4 |
| Secondary Workpiece Material | (H) Hardened Materials |
| Shank Length (LS) (Decimal Inch) | 1.1250 |
| Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
| Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.050 |
| Shank Diameter (DCON) Tolerance (ISO) | h6 |
| Additional Geometry | Right Hand Cut Direction (RHC) |
| Helix Angle | Right Spiral |
| Helix Angle (Degree) | 30 |
| Variable Helix | No |
| Chip Breaker | No |
| US Stock | 244 |
| Shank Type | Straight |
| Cutting Diameter (DC) (Fractional Inch) | 7/64 |
| Length of Cut (APMX) (Fractional Inch) | 3/8 |
| Overall Length (LF) (Fractional Inch) | 1-1/2 |
| Shank Length (LS) (Fractional Inch) | 1-1/8 |
| Rake Angle | Positive |
| Shipping Weight | 0.0120 |
| Center Cutting | Yes |
| Series | 01S |
| Weldon Flat | No |
| Shank Length (LS) (mm) | 28.58 |
| Shank Diameter (DCON) (Fractional Inch) | 1/8 |
| Tool Length | Long |
| End Configuration | Square End |
| Shank Diameter (DCON) (Decimal Inch) | 0.1250 |
| Shank Diameter (DCON) (mm) | 3.18 |
| Length of Cut (APMX) (Decimal Inch) | 0.3750 |
| Length of Cut (APMX) (mm) | 9.53 |
| Overall Length (LF) (Decimal Inch) | 1.5000 |
| Overall Length (LF) (mm) | 38.10 |
| Coolant Option | External Coolant |
| Coating Description | Bright/Uncoated |
| Flute Type | Spiral |
| Unit (inch/mm) | inch |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy |
| Cutting Diameter (DC) (Decimal Inch) | 0.1094 |
| Cutting Diameter (DC) (mm) | 2.78 |
Alternate Products

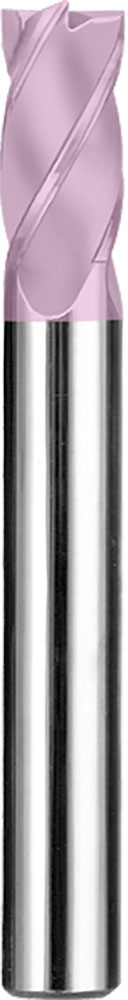

7/64" Dia, 3/8" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 01S, Square End End Mill - 39013
U.S. stocked items ship next day
Total Available U.S. :92

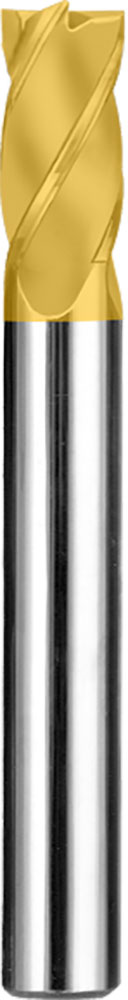

7/64" Dia, 3/8" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE (TiN) Coated, Series 01S, Square End End Mill - 39113
U.S. stocked items ship next day
Total Available U.S. :64

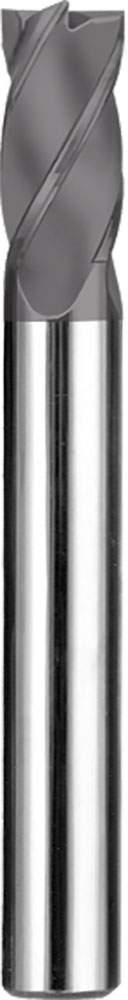

7/64" Dia, 3/8" LOC, 1/8" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 01S, Square End End Mill - 30197
U.S. stocked items ship next day
Total Available U.S. :0
