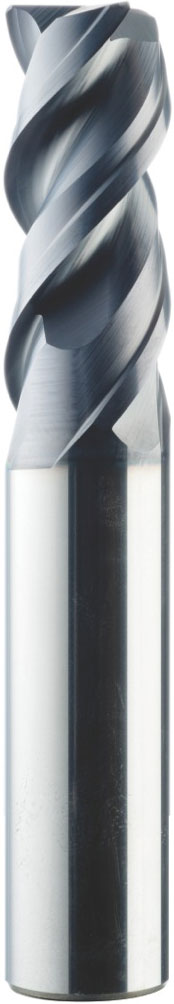

1/2" Dia, 3 Flute, Corner Radius End Mill - 33351


SERIES: 33C
Series 33
1/2" Dia, 1-1/4" LOC, 1/2" Shank Dia, 0.0300" Radius, 3 Flute, 32-48 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 33C, Series 33, Corner Radius End Mill - 33351
Feature & Benefits
Specially engineered step core design provides stability for aggressive ramping and rigidity when flutes are completely engaged
Open design at axial end accommodates material flow and load reduction during machining operations
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
List Price: $152.13
U.S. stocked items ship next day
Total Available U.S. :97
Series DescriptionSeries 33
High PerformanceYes
End ConfigurationCorner Radius
Unit (inch/mm)inch
Number of Flutes3
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials

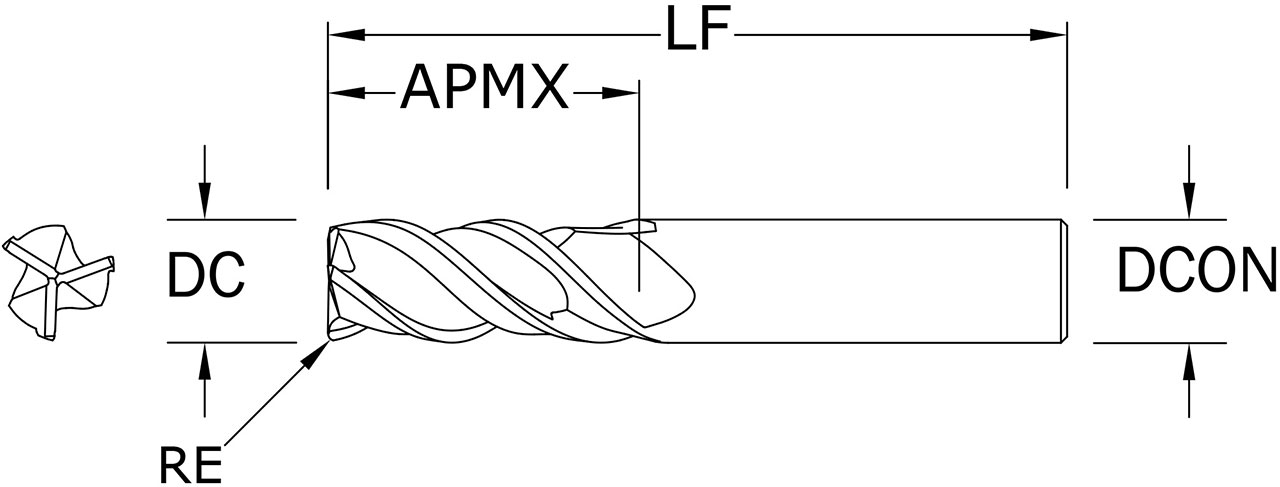

Cutting Diameter (DC) (Decimal Inch)0.5000
Cutting Diameter (DC) (mm)12.70
Shank Diameter (DCON) (Decimal Inch)0.5000
Shank Diameter (DCON) (mm)12.70
Length of Cut (APMX) (Decimal Inch)1.2500
Length of Cut (APMX) (mm)31.75
Overall Length (LF) (Decimal Inch)3.2500
Overall Length (LF) (mm)82.55
Corner Radius (RE) (Decimal Inch)0.0300
Corner Radius (RE) (mm)0.76
Shank Length (LS) (Decimal Inch)2.0000
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0020
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.050
Shank Diameter (DCON) Tolerance (ISO)h6
Corner Radius (RE) Tolerance (Decimal Inch)+0.0000/-0.0020
Corner Radius (RE) Tolerance (mm)+0.000/-0.050
Coolant OptionExternal Coolant
Coating DescriptionAlTiN (Ti-NAMITE-A)
Additional GeometryRight Hand Cut Direction (RHC)
Helix AngleVariable Right Spiral
Helix Angle (Degree)32-48
Variable HelixYes
Chip BreakerNo
US Stock97
Shank TypeStraight
Cutting Diameter (DC) (Fractional Inch)1/2
Length of Cut (APMX) (Fractional Inch)1-1/4
Overall Length (LF) (Fractional Inch)3-1/4
Shank Length (LS) (Fractional Inch)2
Rake AnglePositive
Shipping Weight0.2910
Center CuttingYes
Series33C
Weldon FlatNo
Shank Length (LS) (mm)50.80
End StyleRadius
Shank Diameter (DCON) (Fractional Inch)1/2
Tool LengthRegular

Alternate Products

1/2" Dia, 3 Flute, Corner Radius End Mill - 34779
1/2" Dia, 1-1/4" LOC, 1/2" Shank Dia, 0.0300" Radius, 3 Flute, 38 Degree Helix, Uncoated, Series 43CR, S-Carb, Corner Radius End Mill - 34779
List Price: $121.08
U.S. stocked items ship next day
Total Available U.S. :100

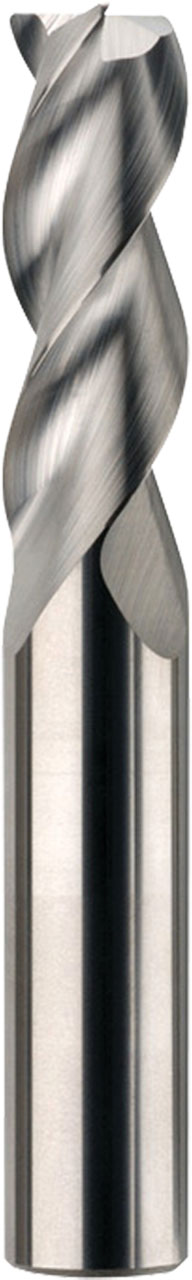

1/2" Dia, 3 Flute, Corner Radius End Mill - 34801
1/2" Dia, 1-1/4" LOC, 1/2" Shank Dia, 0.0300" Radius, 3 Flute, 38 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series 43CR, S-Carb, Corner Radius End Mill - 34801
List Price: $142.58
U.S. stocked items ship next day
Total Available U.S. :119

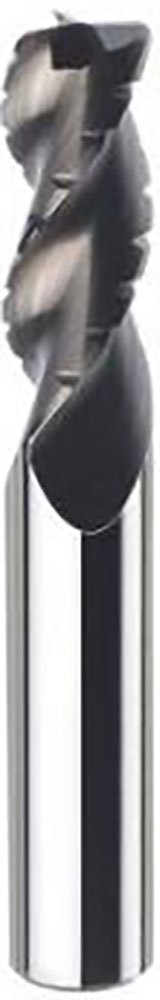

1/2" Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 34301
