5/16" Dia, 5 Flute, Chip Breaker Corner Radius End Mill - 37461
SERIES: Z5C
Z-Carb-HPR
5/16" Dia, 15/16" LOC, 5/16" Shank Dia, 0.0300" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 37461
Feature & Benefits
An ideal balance of helix, indexing, flute depth, rake and relief
Variable indexing for chatter supression and patented edge geometry for shearing and strength
Chatter-free geometry allows deep cutting and high speed machining
Enhanced corner geometry with tight tolerance corner radii
Excels at roughing, ramping, high speed machining and finishing in a variety of materials
Series Description | Z-Carb-HPR |
---|---|
High Performance | Yes |
End Configuration | Chip Breaker (CR) |
Tool Length | Long |
Unit (inch/mm) | inch |
Number of Flutes | 5 |
Primary Workpiece Material | (P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy |
Secondary Workpiece Material | (H) Hardened Materials |

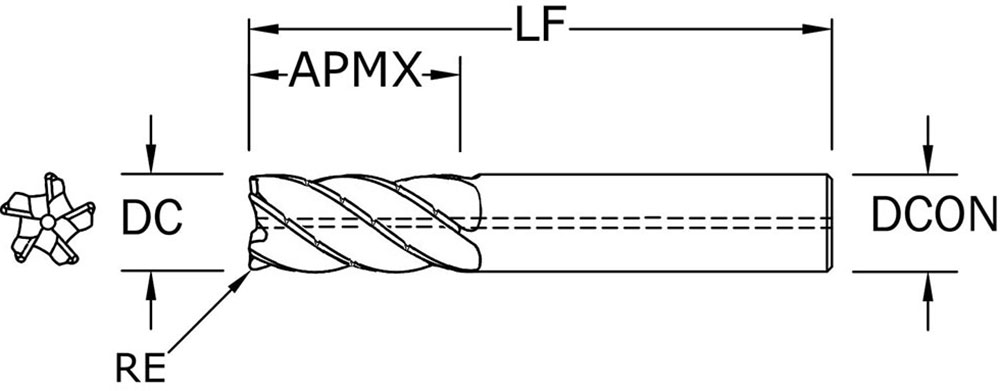

Cutting Diameter (DC) (Decimal Inch) | 0.3125 |
Cutting Diameter (DC) (Fractional Inch) | 5/16 |
Cutting Diameter (DC) (mm) | 7.94 |
Shank Diameter (DCON) (Decimal Inch) | 0.3125 |
Shank Diameter (DCON) (mm) | 7.94 |
Length of Cut (APMX) (Decimal Inch) | 0.9375 |
Length of Cut (APMX) (Fractional Inch) | 15/16 |
Length of Cut (APMX) (mm) | 23.81 |
Overall Length (LF) (Decimal Inch) | 3.0000 |
Overall Length (LF) (Fractional Inch) | 3 |
Overall Length (LF) (mm) | 76.20 |
Corner Radius (RE) (Decimal Inch) | 0.0300 |
Corner Radius (RE) (mm) | 0.76 |
Non-Cutting Center Diameter (NCD) (Decimal Inch) | 0.1090 |
Non-Cutting Center Diameter (NCD) (mm) | 2.77 |
Cutting Diameter (DC) Tolerance (Decimal Inch) | +0.0000/-0.0016 |
Cutting Diameter (DC) Tolerance (mm) | +0.000/-0.040 |
Shank Diameter (DCON) Tolerance (ISO) | h6 |
Corner Radius (RE) Tolerance (Decimal Inch) | +0.0000/-0.0020 |
Corner Radius (RE) Tolerance (mm) | +0.000/-0.050 |
Shank Type | Straight |
Coolant Option | External Coolant |
Additional Geometry | Right Hand Cut Direction (RHC) |
Rake Angle | Positive |
Helix Angle | Right Spiral |
Helix Angle (Degree) | 37 |
Variable Helix | No |
Chip Breaker | Yes |
Shipping Weight | 0.1000 |
Center Cutting | No |
Series | Z5C |
Weldon Flat | No |
Shank Diameter (DCON) (Fractional Inch) | 5/16 |
Coating Description | TM (Ti-NAMITE-M) |
