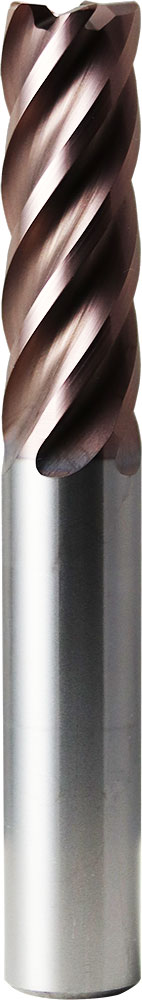

5/16" Dia, 5 Flute, Corner Radius End Mill - 37460


SERIES: Z5C
Z-Carb-HPR
5/16" Dia, 15/16" LOC, 5/16" Shank Dia, 0.0300" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-M (TM) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37460
Feature & Benefits
An ideal balance of helix, indexing, flute depth, rake and relief
Variable indexing for chatter supression and patented edge geometry for shearing and strength
Chatter-free geometry allows deep cutting and high speed machining
Enhanced corner geometry with tight tolerance corner radii
Excels at roughing, ramping, high speed machining and finishing in a variety of materials
List Price: $97.53
U.S. stocked items ship next day
Total Available U.S. :0
Series DescriptionZ-Carb-HPR
High PerformanceYes
End ConfigurationCorner Radius
Tool LengthLong
Unit (inch/mm)inch
Number of Flutes5
Primary Workpiece Material(P) Steel|(M) Stainless Steel|(K) Cast Iron|(S) High Temp Alloy
Secondary Workpiece Material(H) Hardened Materials

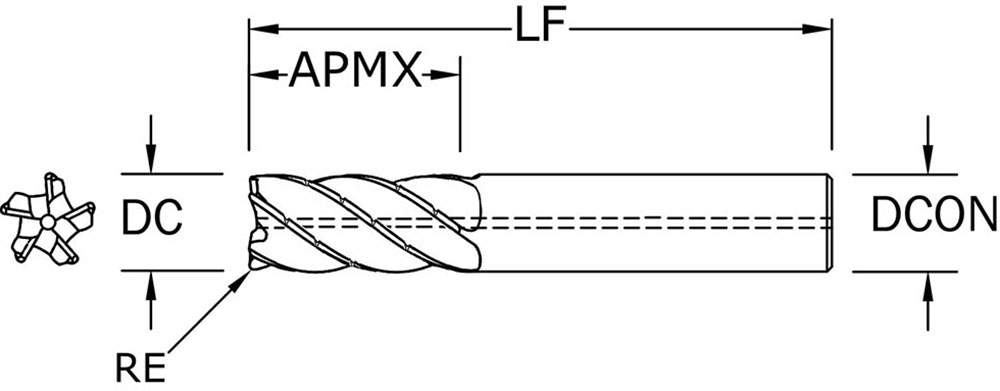

Cutting Diameter (DC) (Decimal Inch)0.3125
Cutting Diameter (DC) (Fractional Inch)5/16
Cutting Diameter (DC) (mm)7.94
Shank Diameter (DCON) (Decimal Inch)0.3125
Shank Diameter (DCON) (mm)7.94
Length of Cut (APMX) (Decimal Inch)0.9375
Length of Cut (APMX) (Fractional Inch)15/16
Length of Cut (APMX) (mm)23.81
Overall Length (LF) (Decimal Inch)3.0000
Overall Length (LF) (Fractional Inch)3
Overall Length (LF) (mm)76.20
Corner Radius (RE) (Decimal Inch)0.0300
Corner Radius (RE) (mm)0.76
Non-Cutting Center Diameter (NCD) (Decimal Inch)0.1090
Non-Cutting Center Diameter (NCD) (mm)2.77
Cutting Diameter (DC) Tolerance (Decimal Inch)+0.0000/-0.0016
Cutting Diameter (DC) Tolerance (mm)+0.000/-0.040
Shank Diameter (DCON) Tolerance (ISO)h6
Corner Radius (RE) Tolerance (Decimal Inch)+0.0000/-0.0020
Corner Radius (RE) Tolerance (mm)+0.000/-0.050
Shank TypeStraight
Coolant OptionExternal Coolant
Coating DescriptionTM (Ti-NAMITE-M)
Additional GeometryRight Hand Cut Direction (RHC)
Rake AnglePositive
Helix AngleRight Spiral
Helix Angle (Degree)37
Variable HelixNo
Chip BreakerNo
Shipping Weight0.1000
Center CuttingNo
SeriesZ5C
Weldon FlatNo
Shank Diameter (DCON) (Fractional Inch)5/16

Alternate Products

5/16" Dia, 5 Flute, Corner Radius End Mill - 37458
5/16" Dia, 15/16" LOC, 5/16" Shank Dia, 0.0300" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Corner Radius End Mill - 37458
List Price: $97.53
U.S. stocked items ship next day
Total Available U.S. :0

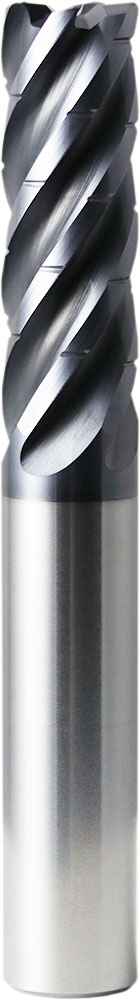

5/16" Dia, 5 Flute, Chip Breaker Corner Radius End Mill - 37459
5/16" Dia, 15/16" LOC, 5/16" Shank Dia, 0.0300" Radius, 5 Flute, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series Z5C, Z-Carb-HPR, Chip Breaker Corner Radius End Mill - 37459
List Price: $110.47
U.S. stocked items ship next day
Total Available U.S. :0

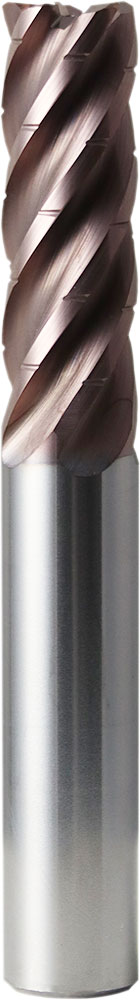

5/16" Dia, 5 Flute, Chip Breaker Corner Radius End Mill - 37461
